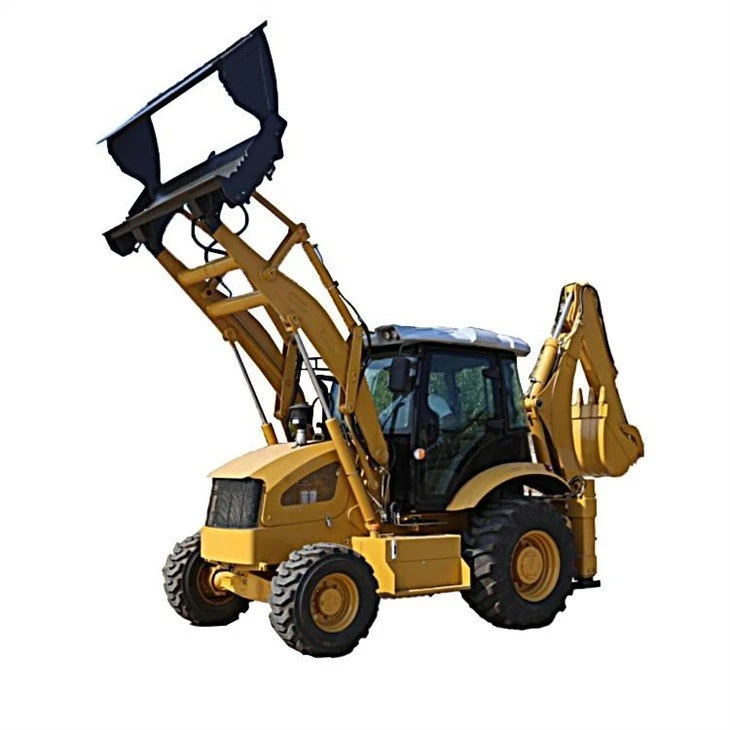

WZ30-25 Model Garden Work Backhoe Loader
Features:
Backhoe loader is a type of construction machinery, and different working devices are installed on both sides of its body. Equipped with excavator bucket on one side and loader bucket on the other side.
When the two ends are busy with excavator construction, the operator only needs to turn the seat to change the working end.
Due to the need to excavate and carry soil for various projects, the application range of the backhoe loader is very wide.
For example, trenches need to be dug to route pipes and underground cables, lay the foundations of buildings and establish drainage systems. Many other tools can do this kind of work, but a busy excavator can greatly improve efficiency. In comparison, the excavator loader is compact in size compared to larger single-function equipment such as a crawler excavator. And they can also move around on various construction sites and even run on roads. While some mini loader and excavator equipment may be smaller than a backhoe loader, using a backhoe loader can save a lot of time and money if a contractor is doing both digging and loading operations.
|
Overall Operation Weight |
7640 kgs |
|
Transport Dimension |
6170x2268x3760 mm |
|
Wheel Base |
2370 mm |
|
Loading Bucket Capacity |
1.0 m³ |
|
Breakout Force |
58kN |
|
Loading Lift Capacity |
2500 kgs |
|
Bucket Dumping Height |
2770 mm |
|
Bucket Dumping Distance |
925 mm |
|
Backhoe Bucket Capacity |
0.3m³ |
|
Backhoe Max. Digging Depth |
4082 mm |
|
Swing Angle of Excavator Grab |
190° |
|
Max. Pulling Force |
65kN |
|
Engine Brand |
Yu Chai |
|
Engine Model |
YC4A105Z-T20 |
|
Model of Steering Device |
BZZ5-250 |
|
Steering Angle |
36° |
|
Min. Turning Radius |
5018 mm |
|
Tyre |
16/70-20 |
|
Max Speed |
22 Km/h |
