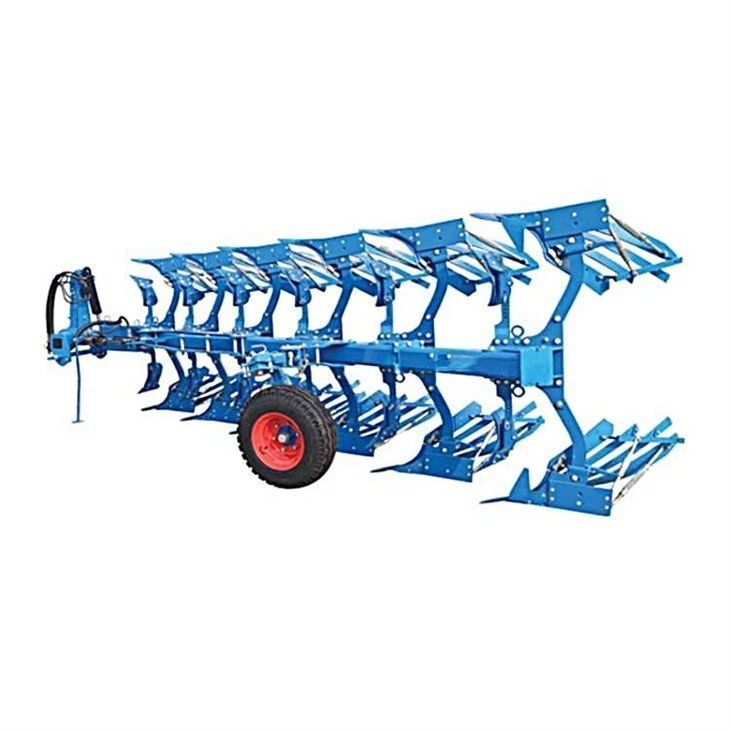

ILF Series Hydraulic Heavy Duty Disc Plough
Features:
1. Large volume, wide arable range,suitable for large farm operations.
2. Equipped with hydraulic cylinder, which can be turned left and right, saving time and effort.
3. OEM accept. Can be produced according to customer requirements.
Type | ILF-330 | ILF-530 | ILF-730 | ILF-535 | ILF-635 | ILF-735 |
Single Plough Body | 300 | 350 | ||||
Max. Working Width (mm) | 900 | 1500 | 2100 | 1750 | 2100 | 2450 |
Max. Working Depth (mm) | 200-350 | |||||
Matched Power (hp) | 50-80 | 90-120 | 160-200 | 120 | 130-155 | 160-200 |
Weight (kg) | 630 | 1200 | 1850 | 1200 | 1550 | 1900 |
Linkage | Standard three point mounted | |||||
The hydraulic overturning plow includes a suspension frame, a turning cylinder, a non-return mechanism, a ground wheel mechanism, a plow frame and a plow body. Location, suitable for dry land farming in soil and sandy loam areas. It has the characteristics of simple structure, large adaptability range for farming, good work quality, flat surface, good soil breaking performance and small moisture ditch.
Shandong Sadin Heavy Industry Co.,Ltd is a tractor manufacturer. In order to meet the diverse purchasing needs of buyers, we also manufacture various types of agricultural machinery. For example: front end loader, backhoe, mower, rotary tiller, grass cutter, seeder, harvester. We provide a one -stop purchase uniform service. If you are interested in our items, please leave message to us. Your feedback will be highly appreciated.
