LZ922D
Feactures:
1. Large lifting force, the largest lifting force of its kind, percent 11 higher than competing product.
2. Small turning radius, the turning radius is the smallest in its class, the steering angle is 38, and the high unloading model does not exceed 5 meters.
3. The only one in the industry, the supporting accessories are all universal, reducing the user's capital investment.

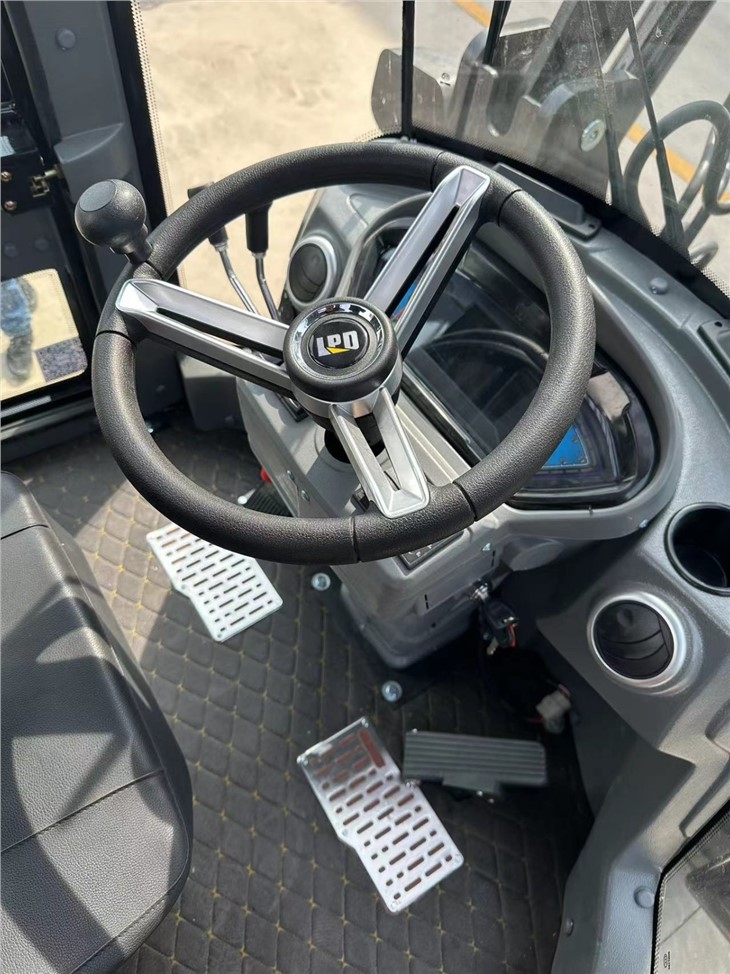

4. Luxurious space capsule cab, comfotable and safe, noise below 85 decibels, low noise and strong sealing.
Configuration
|
Rated load mass |
kg |
2200 |
|
|
Total weight |
kg |
6300 |
|
|
Bucket volume |
m³ |
0.85 |
|
|
Bucket width |
mm |
2280 |
|
|
Dimension(L×W×H) |
mm |
6790/2280/3030 |
|
|
Wheel tread |
mm |
1700 |
|
|
Wheel base |
mm |
2575 |
|
|
Max.unloading height |
mm |
3600 |
|
|
Min.turning radius |
mm |
4950 |
|
|
Min.ground clearance |
mm |
360 |
|
|
Boom lift |
s |
6.65 |
|
|
Boom down |
s |
3.2 |
|
|
Trinomial sum |
s |
9.85 |
|
|
Driving speed |
LowⅠ(F/R) |
km/h |
7 |
|
LowⅡ(F/R) |
km/h |
12 |
|
|
HighⅠ(F/R) |
km/h |
22 |
|
|
HighⅡ(F/R) |
km/h |
32 |
|
|
Engine |
Model |
|
Quanchai4C6 |
|
Rated power |
kW |
89 |
|
|
Rated speed |
r/min |
2400 |
|
|
Emission Standards |
|
China Ⅲ |
|
